Stock #HLE0002 925-40179

2026 HLE MAVRYK on a 2025 Ford E450

Name: 2026 HLE MAVRYK on a 2025 Ford E450
Brand: High Level Enterprises (HLE)
SKU: HLE0002 925-40179
Availability: InStock

16 Passengers, up to 2 Wheelchairs + Driver

Print / Save Presentation (PDF) Inquire on This Unit

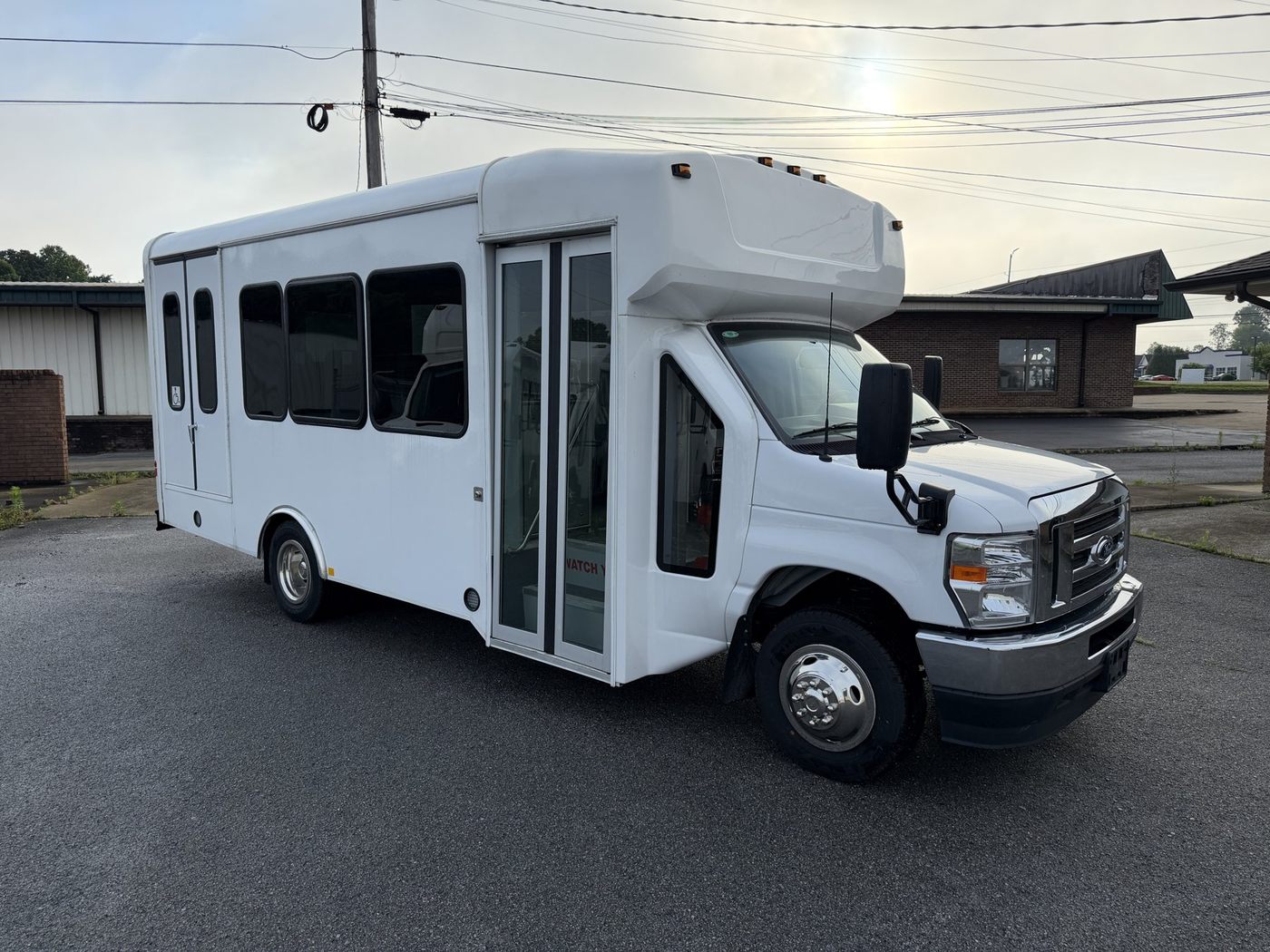

2026 HLE MAVRYK on a 2025 Ford E450 — photo 1

Vehicle Details

Stock #	HLE0002 925-40179
Condition	New
Model	HLE Mavryk
Chassis	2025 Ford E450
Seating	16 Passengers, up to 2 Wheelchairs + Driver
Wheelchair positions	Up to 2
VIN	1FDFE4FN3SDD12861

Call for price (423) 720-3055

Specifications are provided for general reference and subject to correction — confirm final details with BRBS before purchase. TN Dealer License #22298.

This Unit's Layout

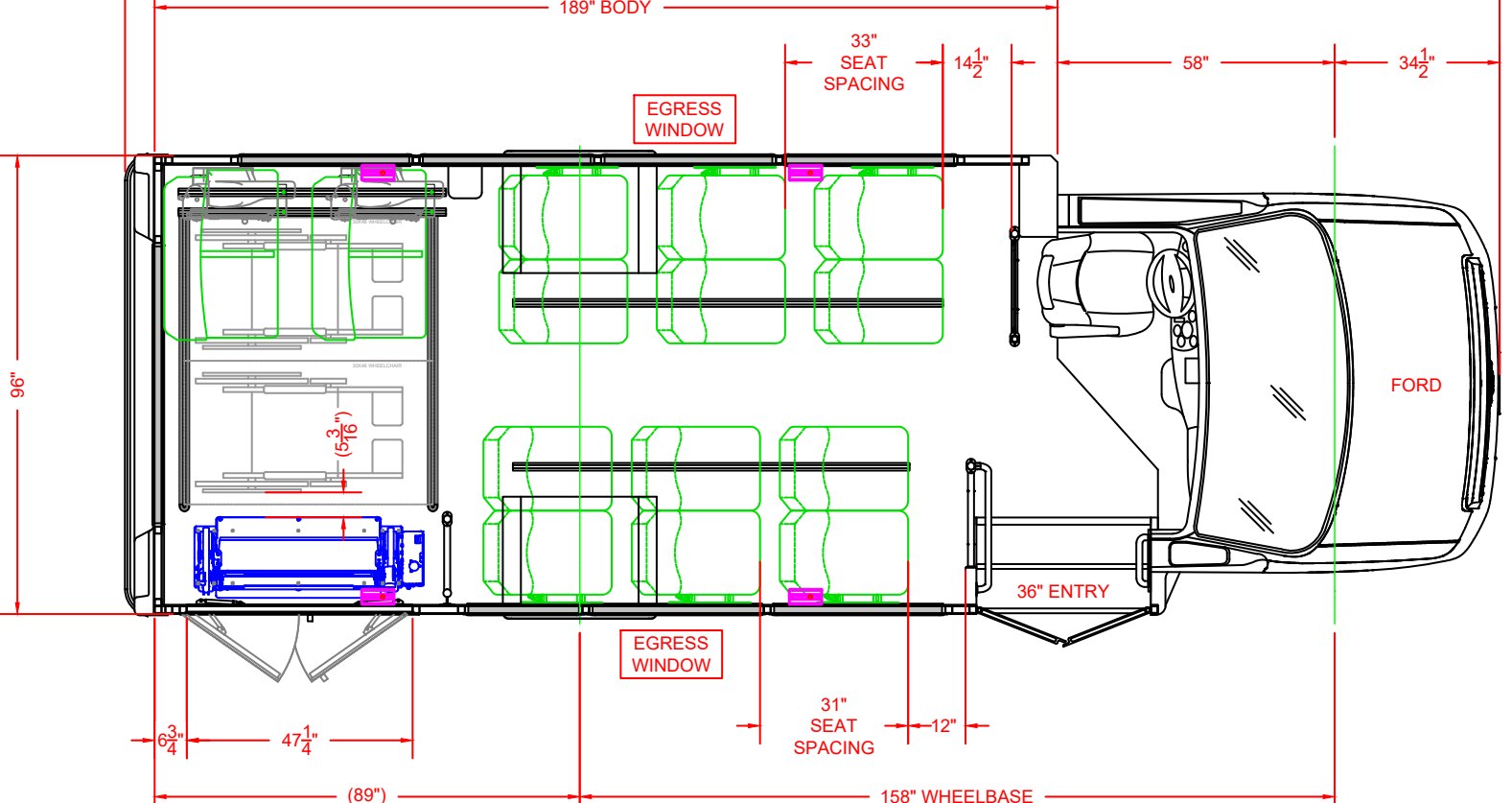

Floor Plan

As-Built

Full Features & Specifications

Everything on this exact unit, straight from the build sheet.

SPECIAL INSTRUCTIONS

158 WB / 189 BODY
FUEL TANK HEAT SHIELD BETWEEN EXHUST AND FUEL TANK EVERYWHERE EXHAUST IS WITHIN 8" OF FUEL TANK
DRIVESHAFT LOOPS AT EVERY BREAK POINT

BODY

HLE-24: 158" Wheelbase; 188" Box Body

CHASSIS FEATURES

Front Mud Flap (1), Passenger Side Only (to be used with Running Board)
Rear Mud Flaps, Pair
OEM Running Board on Driver Side - Ford Only
Reroute Chassis Exhaust Tailpipe to Driverside Rear Corner
Heat Shield/Guard Between Exhaust and Fuel Tank - Ford Only
Front End Alignment
Exterior Mirror Set, Manual
Powdercoated Steel Rear Bumper with Filler Panel
Stainless Steel Wheel Insert, set of 4 for (16") Wheels (front & rear)
Aluminum Rear Fender Flares

EXTERIOR PAINT & GRAPHICS

ALL FIBERGLASS/COMPOSITE EXTERIOR

EXTERIOR

DOT Exterior LED Lighting and Reflectors
Recessed Mount LED Entry Door Exterior Light
LED Rear Center Mount Brake Light, 6" Oval
Independent RED Brake & AMBER Turn Signal Lights
LED Light in Engine Area

INT. SIDEWALL / REARWALL / CEILING

Driver Area: Gray Padded Vinyl
Cove Flooring on Sidewall to Seat Track - Flooring Covering
Padded Vinyl Interior — GRAY OR BLACK? GRAY
Powdercoat Body Structure

DOORS / HATCH / WINDOWS

Passenger Door Electric (STANDARD); Interior Light; (1) Step Light
Passenger Door 36" ROUGH OPENING (STANDARD)
Steel Entry Door Portal with Step Well
Exterior Passenger Entrance Door Key
Extra Key for Electric Entry Door

FLOORING

Standard Flooring: Altro Storm (Gray)
Sub-Floor - PerformMAX 500 Panel Flooring
Aluminum Step Nosing with White Insert - Standard

INTERIOR

J-Channel in Light Bar for 11" Ads - You MUST indicate below if you want the lights moved from the light bar to the ceiling to facilitate this. Otherwise, lights will not be moved.
Piano Hinged Access Panel with Thumb Latch for Entry Door Header
Driver Coat Hook

INTERIOR LIGHTS

Interior LED Dome Lights (20-24ft = 4 Lights; 25-30ft = 6 Lights)
Door Activated Interior Lights With 5 Second Delay

ELECTRICAL

SWITCH PANEL STANDARD
INTERMOTIVE FLEXTECH PROGRAMMABLE ELECTRICAL SYSTEM
Interlock — Optional System - Ford Chassis - REQUIRED with Lift or Rear Door
Laminated Wiring Schematic ***AS BUILT*** ON ELECTRICAL PANEL DOOR
Wiring Diagram "AS BUILT" ON USB Flash Drive

CLIMATE CONTROL OPTIONS

1-KIT-B048 - — FORD 7.3 LITRE GAS
Insulated Heater and A/C Hoses

CHEVY OEM RADIO ORDERED ON CHASSIS

4 Speakers with Wire to Chassis OEM Radio (if supplied)

LUGGAGE RACK / STORAGE

Overhead Luggage Rack with Lights - Street Side Only PER BODY MODEL FOOT (24)

GRAB RAIL / STANCHION / PANELS

Left Hand Stanchion and Modesty Panel at Entry Door, with Grab Rail Parallel to Entry Steps
Stanchion and Modesty Panel Behind Driver
Modesty Panel at Wheelchair Lift (extend from floor to top of lift)
NOTE: NO PLEXIGLASS

SEATING

OEM DRIVER'S SEAT ORDERED ON CHASSIS
Re-Upholster OEM Driver or Co-Pilot (Each)* Fabric Level is Additional To This
Driver Seat Cover - Level 4

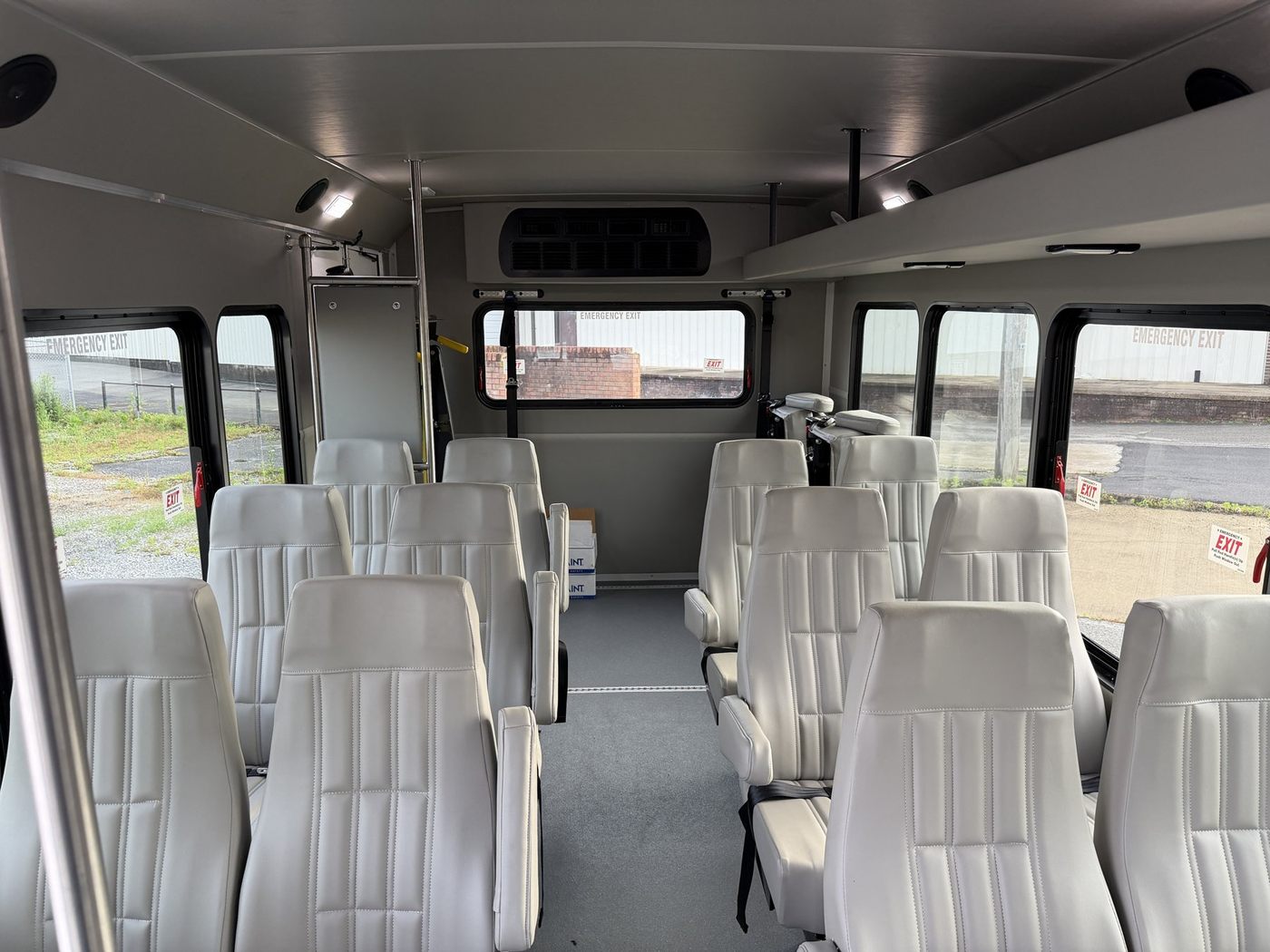

High Back Double Seat (6)
Foldaway Seat, Double AM Benchback (2)
Seat Cover - Level 4 (16)
Flip-Up Upholst. Armrest — LOCATION: AISLE (8)
Seat Belt, Non-Retractable - STANDARD - ENTER QUANTITY (16)

PARATRANSIT OPTIONS

Double W/C Doors w/ Windows, (1) LED Interior Light, (1) LED 4" Exterior Grommet Light, Gas Shocks, Warning Light and Buzzer in Driver Area

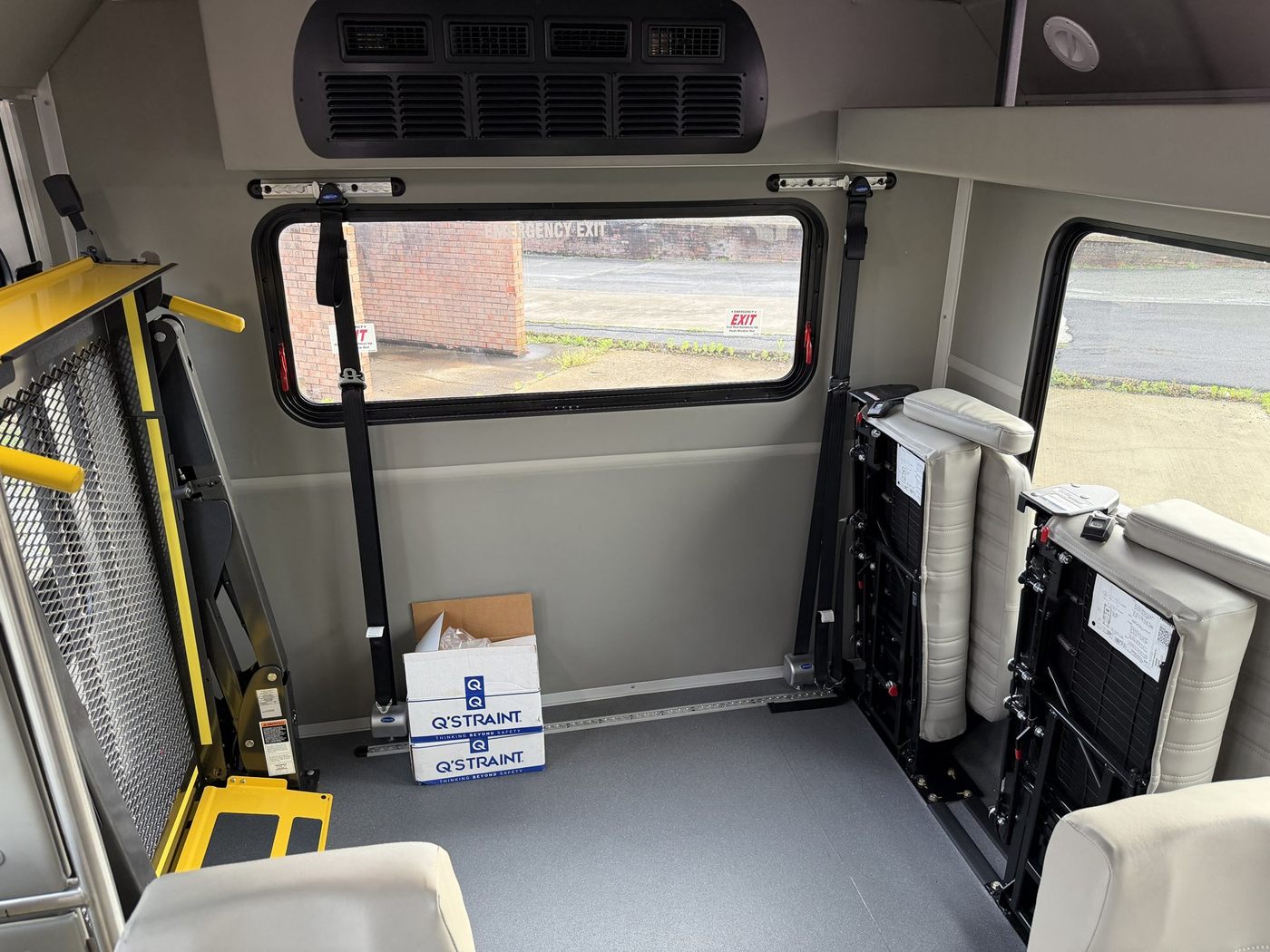

Braun Century NCL917-2 800# Lift (34"x54") With Timbren Rear Only Suspension Kit and Installed Braun Seat Belt

WHEELCHAIR SECUREMENT & ACCESSORIES

Q-8200-A1-L - 4 QRT STD Retractors with L-Track Fittings (Q8-6201-L) & Wall Mount Retractable Comb-Lap/Shldr Belt (Q8-6326-A1) (2)
Q5-8522 Q Straint Belt Storage Pouch, Nylon (2)
Q-Straint Belt Cutter with Velcro - Shipped Loose
Priority Seating Sign **Required for ADA Compliance for Fixed-Route Systems**
Additional International Symbol of Accessibility Decal (1 Decal with Lift is Standard) - Each

SAFETY OPTIONS

5 Lb Fire Extinguisher
16 Unit First Aid Kit
Emergency Triangle Kit
Back-Up Alarm SAE Type C 97 db(A)
LCD Combo Rearview Mirror/Monitor Backup Camera Kit
Interior Flat Mirror, 6" x 16" (N/A ON DUAL DOOR CHASSIS)
White "Standee" Line
Decal Set "Please Watch Your Step" - At Entry Steps and Raised Floor If Equipped
Decal "Vehicle Height Sticker"
All Emergency Exit Decals as Required by FMVSS Standards

SPECIAL BUILD OPTIONS

HLE 5 Year / 100,000 Mile Limited Warranty

This Unit

Want Numbers on Stock #HLE0002 925-40179?

Send the form and we'll come back with pricing, delivery timing, and anything else you want to know about this unit — usually within the hour during business hours.

Want it configured differently? Seats, wheelchair positions, and trim can usually be adjusted — ask.
